Focus:

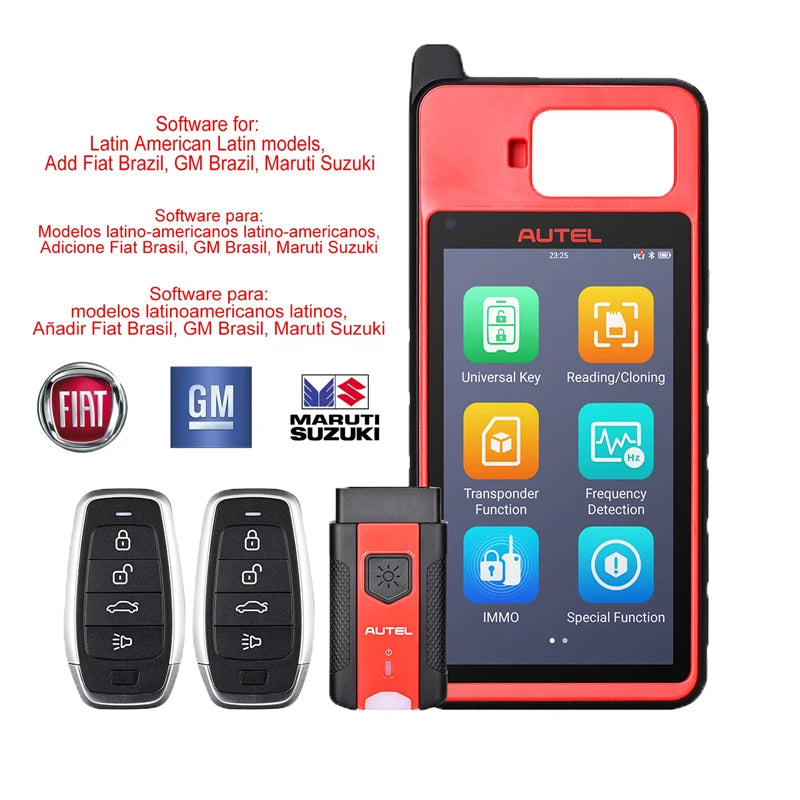

This link has 2 options. If you need Brazil and Latin America models, please select ''Globaver Brazilversion''. If you don't need Brazil and Latin America models, please select "Global Version".

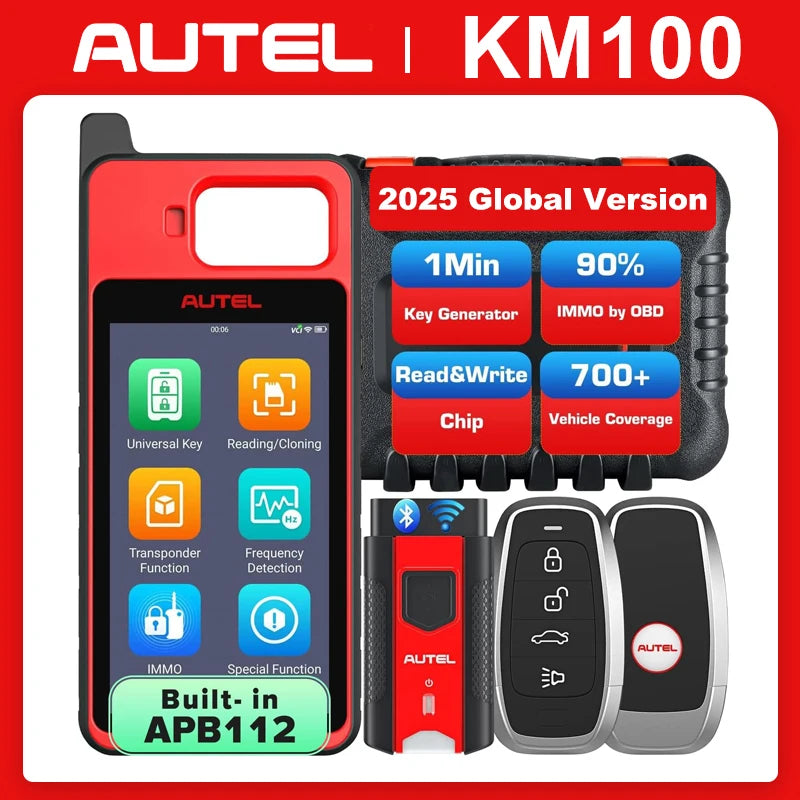

Autel MaxiIM KM100=Autel MaxiIM KM100E Key Fob Programming Tool, IM508 & IM608 2025 New Alternative IMMO Key programmer with 2 Blank Ikeys, Transponder Chip Read, Write, Clone, Guided IMMO Paring, Frequency Detection

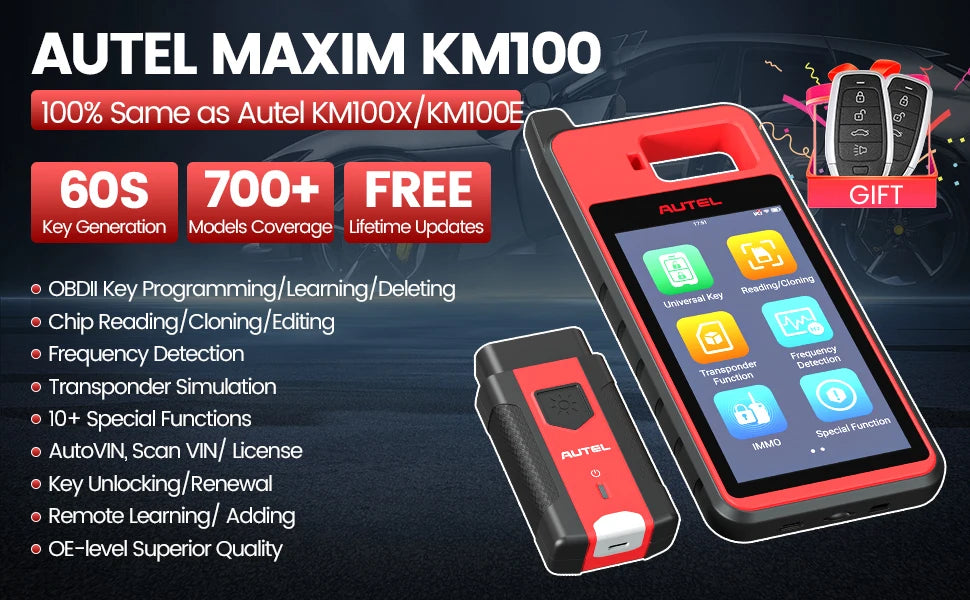

Autel MaxiIM KM100（same as KM100E and KM100X）is an advanced key and immobilizer touchscreen tablet which can be used on 📢60s universal key gёnёration 📢chip read&wirte&c-lonё 📢full IMMO services 📢frequency detection 📢auto VIN/License 📢10+ special functions. KM100E(2025 version), a do-all-thing key fob programming tool.

2025 Newest Autel MaxiIM KM100, Autel First Professional, Portable Intelligent Key Tool!

Specialized in automotive key fob programming for years, 2025 Newest Autel MaxiIM KM100 key programmer, this 5.5-inch, Android touchscreen with Bluetooth VCI can program the Autel I~KEY as a smart key replacement for 700+ vehicles and offers IMMO Key Learning via OBD on 90% vehicles including for BMW, for Volkswagen, for Toyota, for Honda, and for General Motors. Additional innovative features such as Key renewal and Transponder Editing of 20 supported protocols.

Key Reason to buy Autel MaxiIM KM100:

1. 𝗠𝗼𝗿𝗲 𝗖𝗼𝘀𝘁-𝗲𝗳𝗳𝗲𝗰𝘁𝗶𝘃𝗲 𝘁𝗵𝗮𝗻 𝗜𝗠𝟱𝟬𝟴, Comparing to Autel IM508 or IM608, Autel KM100E with faster key generation speed( (50% faster than IM508/IM608/IM608 Pro)
2. 𝗜𝗠𝗠𝗢 𝗙𝘂𝗻𝗰𝘁𝗶𝗼𝗻𝘀 & 𝗔𝘂𝘁𝗼 𝗩𝗜𝗡, KM100 car key programmer builds a data link to vehicles’ IMMO system which can do IMMO Key learning on 90% cars. AutoVIN & Scan VIN/ License to accurately identify the car data with one touch.
3. 𝗕𝘂𝗶𝗹𝘁-𝗶𝗻 𝗔𝗣𝗕𝟭𝟭𝟮, KM100 has covered all the functions of APB112 (Autel Smart Key Fob Emulator).
4. 𝟲𝟬𝘀 𝗞𝗲𝘆 𝗚𝗲𝗻𝗲𝗿𝗮𝘁𝗶𝗼𝗻, 60s Universal Key Generation 💕Please note: The Autel KM100 can only program Autel I-key.
5. 𝟮 𝗨𝗻𝗶𝘃𝗲𝗿𝘀𝗮𝗹 𝗕𝗹𝗮𝗻𝗸 𝗔𝘂𝘁𝗲𝗹 𝗜-𝗸𝗲𝘆𝘀, comes with 2 blank Autel smart I-keys, which are compatible with the frequency of 315M/ 433M and 868M / 915M, and can transmit signals up to 130ft. (40 meters).
6. Lifetime FREE Updates & 0% Purchase Risk & 100% Reliable Service
7. Global Version No IP Blocking Problem
8. Supporting 8 Key Series And 37 Models
9.Multi-Language Supported: English, German, Spanish, French, Polish,Portuguese, Italian, Dutch, Swedish, Russian, Korean, Japanese, Chinese

>>> Hightlights in Key Fob Programming & IMMO Learning:

✔️60s Autel Universal Ke-y Generation, speed up by 50%, Compatible with Dual-Band (315M/433M) and (868M/915M);
✔️ Programs Autel' s I~KEY universal key as smart ke-y replacement for 700+ vehicles;
✔️ IMMO Key Learning via OBD on 90% vehicles, for BMW, for Volkswagen, for Toyota, for Honda, for General Motors, etc.;
✔️ Ch~ip Reading/ Writing/ Cloning of 20 supported protocols.;
✔️ Transponder Generation/ Simulation/ Conversion between ID63 and ID83;
✔️ Frequency Detection；
✔️ 10+ Special Functions;
✔️ And More...

1-Min Ultra-fast Universal Key Generation, Beyond Your Imagination!

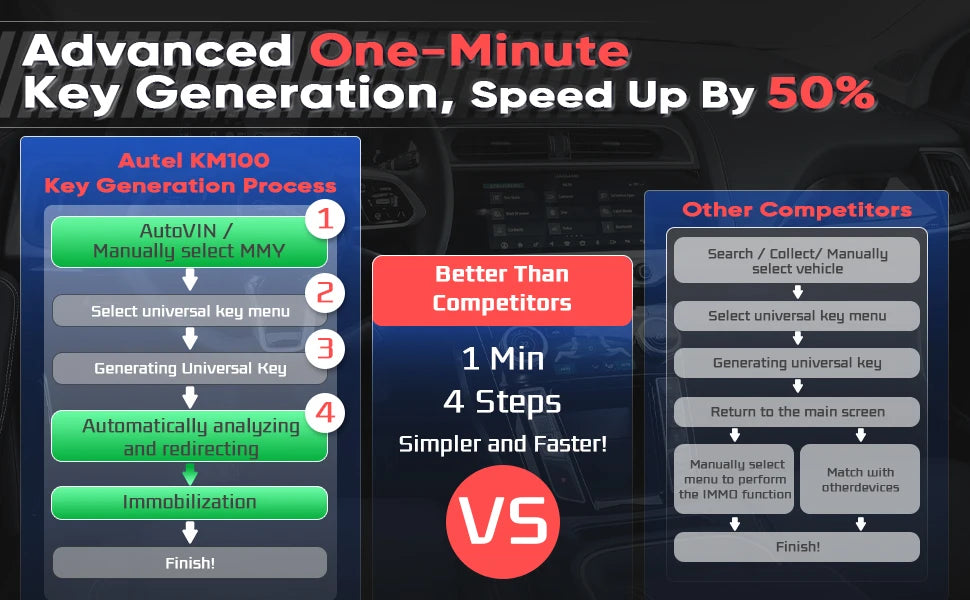

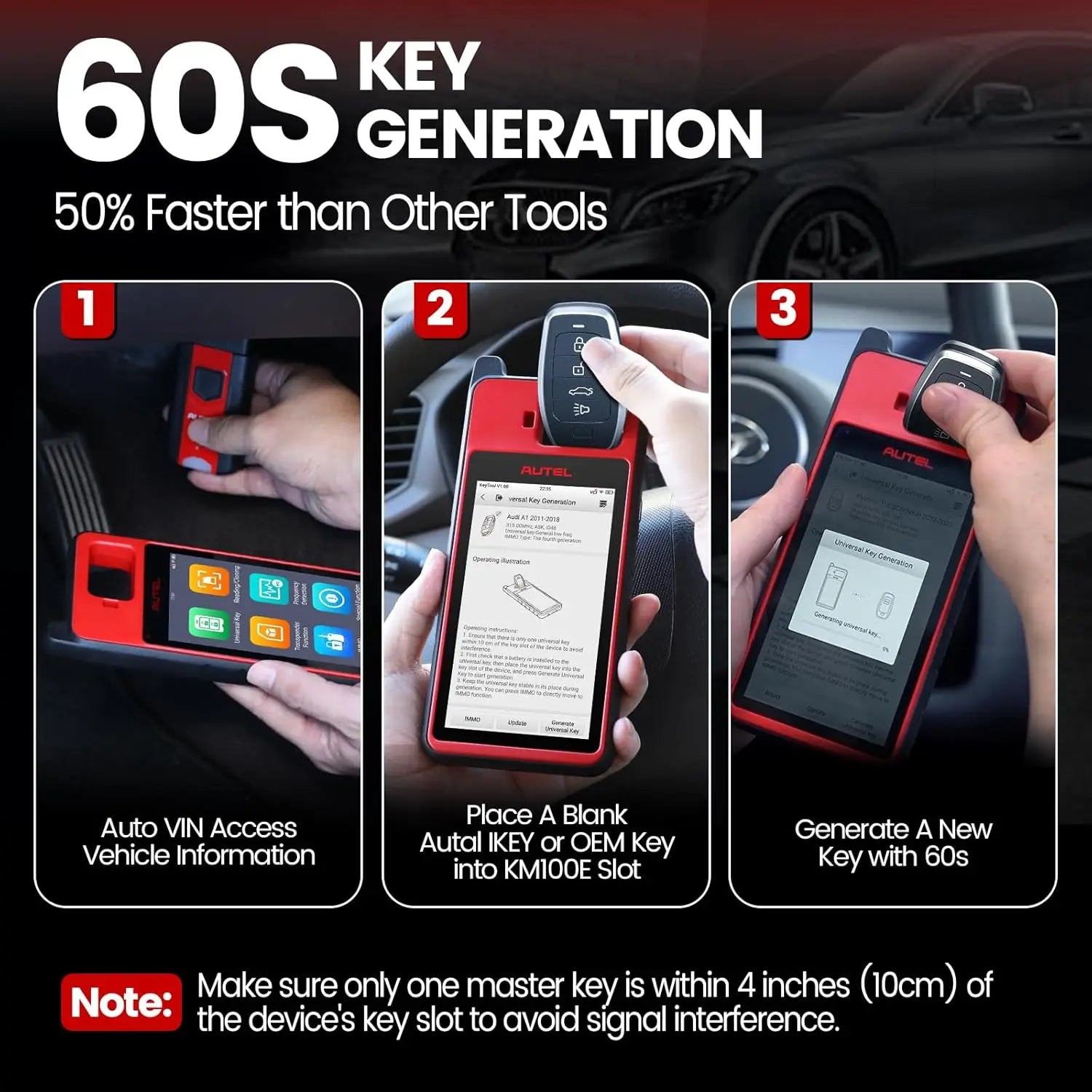

>>> 60s Universal Key Generation:

As shown in the above two pictures, we can see that compared with other compatitors, Autel 2023 KM100 Key Fob Programming Tool has greatly simplifies key generation process for better user experience. Only 1 Min, 4 Steps, Speed up by 50%, you can generate a I~KEY, helping you save more time and win more business.

What's more important, this Autel KM100 Car Key Fob Immobilizer Tool supports One Tap to the IMMO function just after k~ey generation, while competitors need you return to the main screen again, and then manually select menu to perform the IMMO funtion, which is undoubtedly the most annoying thing for a locksmith!

Last but not least, our KM100 key scanner comes with 2pcs FREE universal smart blank keys in the package which support generating a wide range of universal keys with reliable quality to meet various needs of customers. Autel I~KEY supports 37 kinds of appearance (continuously increasing with updates), and is compatible with low frequency (315M/433M) and high frequency (868M/915M) two types.

>>> 4 Methods for Quick Car Identification:

Auto VIN, Manual VIN Input, Automatic Selection, Manual Selection.

Professional & Complete IMMO Ke~y Learning Via OBD on 99% Vehicles, Meet All Your Needs!

The IMMO application requires a data link to the IMMO electronic control system of the test vehicle for diagnosis via OBDII connection. The application retrieves vehicle IMMO information and performs IMMO related functions. For example:
✔️ Read PIN;
✔️ Key Learning;
✔️ Remote Control Learning;
✔️ Remote Control Add;
✔️ All-Key-Lost;
✔️ IMMO data backup/restore;
✔️ IMMO ECU Reset/ Adaptation/ Refresh/ Coding;
✔️ And More...
Note:
1. Industry-Leading coverage of IMMO learning via OBD for more than 90% of models, including for BMW, for Volkswagen, for Toyota, for Honda, for General Motors, etc.

2. Welcome to send your car VIN# to us to help you check compatibility first.

Note:
The equipment does not have the following special cars, if you need the following models, please contact us to add processing:
Australian car: Fordau, Holden
Malaysian car: Perodua,proton
Brazil, Latin America, South America: Fiat Brazil, Gm Brazil, Maruti Suzuki,
Indian cars: Maruti Suzuki, Mahindra, Tat, India Datsun

10+ Hot & Special Functions, All- in-one Tool Solutions for Auto Keys!

Apart from professional features such as Universal Ke-y Generation, Complete IMMO Key Learning, 2023 Autel MaxiIM KM100 also supports 10+ hot and special functions:

1. IMMO Data Processing: load the IMMO related ECU information of a vehicle to calculate a password and other IMMO information, which will be written into the transponder of the vehicle, the processed transponder can be used to start the vehicle, in other words, you now have an extra ke-y
available.

2. Ke-y Unlocking (Ke-y Renewal): enables you to renew a used smart key to unlock a new car, which is achieved by renewing the firmware of the used smart key via cable connection, working on 36 vehicle makes.

3. Toyota Smart Un-locking: With this function, you can unlock other Toyota models with your Toyota smart ke-y. Unlocking of the 4D 40/80 bit and 8A 128 bit original Toyota smart chips is supported.

4. Button Adjustment: assign the button functions of the Autel universal ke-y.

5. Universal Ke-y Information Detection: especially designed to read the Autel universal key information, including the serial number, key ID, and IMMO version, etc.

6. Ignition Coil Detection: enables the key tool to gather the data of the IMMO protocol and transponder type of the vehicle, while Autel old models IM508/ IM608 cannot support this special functions.

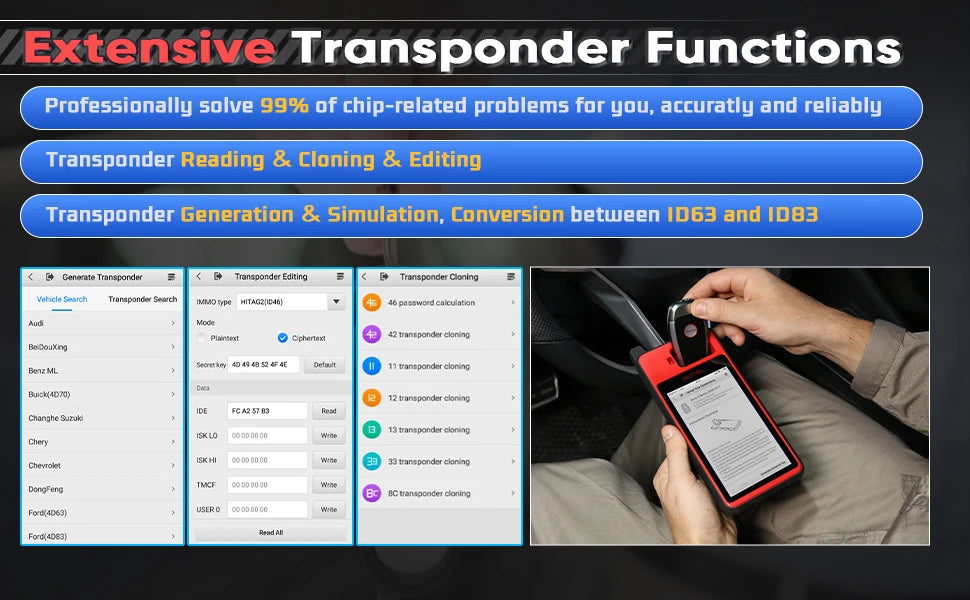

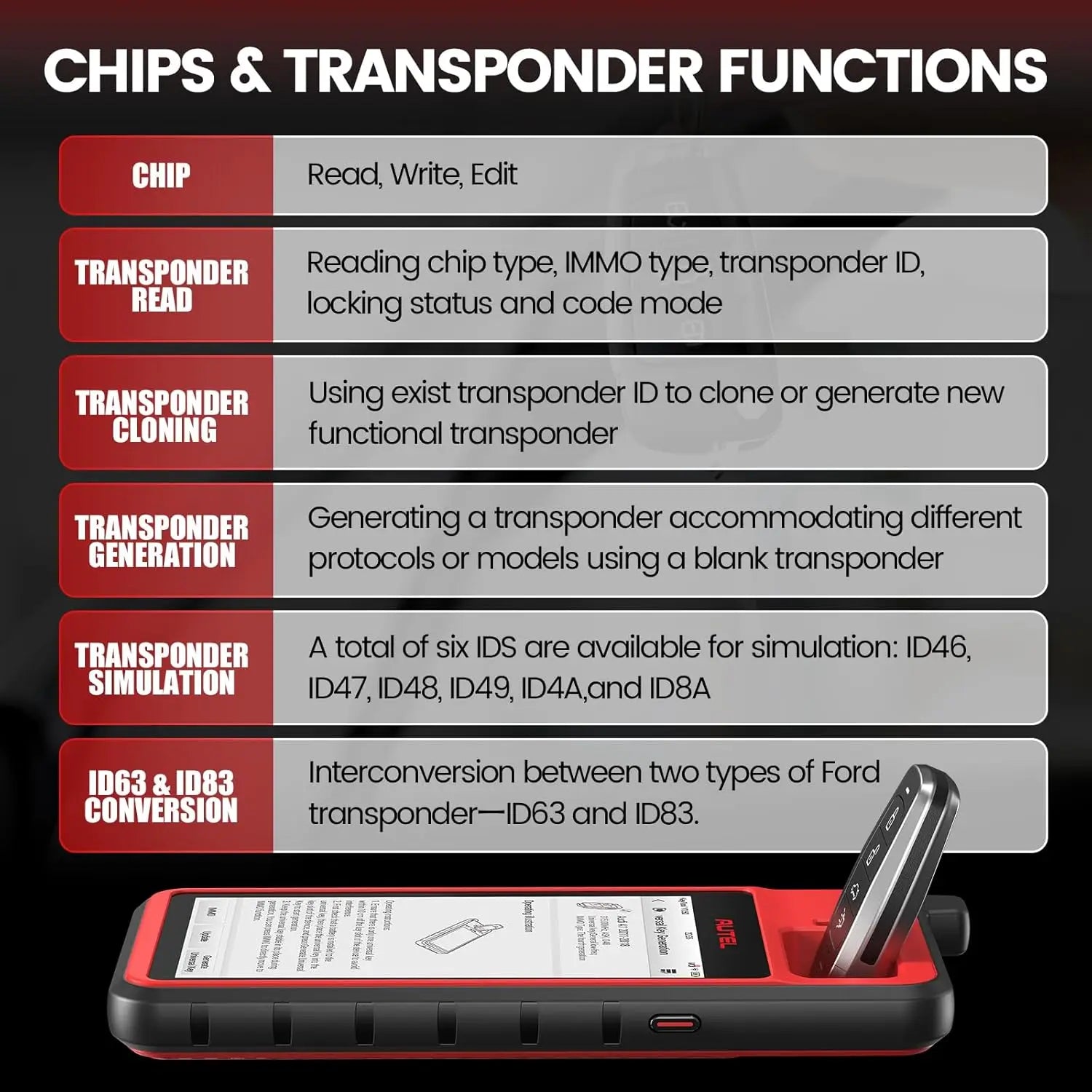

Extensive Transponder Functions, Solve Almost Ch~ip Related Issues!

1. Transponder Reading: access to some basic information of the key, including chip type, IMMO type, transponder ID, locking status, and code mode.
2. Transponder Cloning: detect the transponder and vehicle informationin order to decrypt a code which shall be used to directly clone and generate a functional transponder for your vehicle. The whole process saves the trouble of using the old OBD approach.
3. Transponder Editing:read and edit transponder information such as its configurations and EEPROM data. Choose an IMMO type (which can be accessed by the transponder reading function) and start editing according to your needs.
4. Transponder Generation: generate a transponder accommodating different protocols or models using a blank transponder.
5. Transponder Simulation: used to simulate the KM100 as a transponder using a variety of IMMO protocols. This function is particularly useful when your vehicle needs emergency start or such.
6. Conversion between Ford ID63 & ID83: especially designed for the conversion between two types of Ford transponder — ID63 and ID83.

Kindly Noted:

The KM100 supports various transponder types for cloning and editing. Choose the corresponding cloning procedure according to your transponder identification number (ID).

Come with 2PCS Blank Smart K~ey with OE-Level Stable Quality, Convenient and No-Risk!

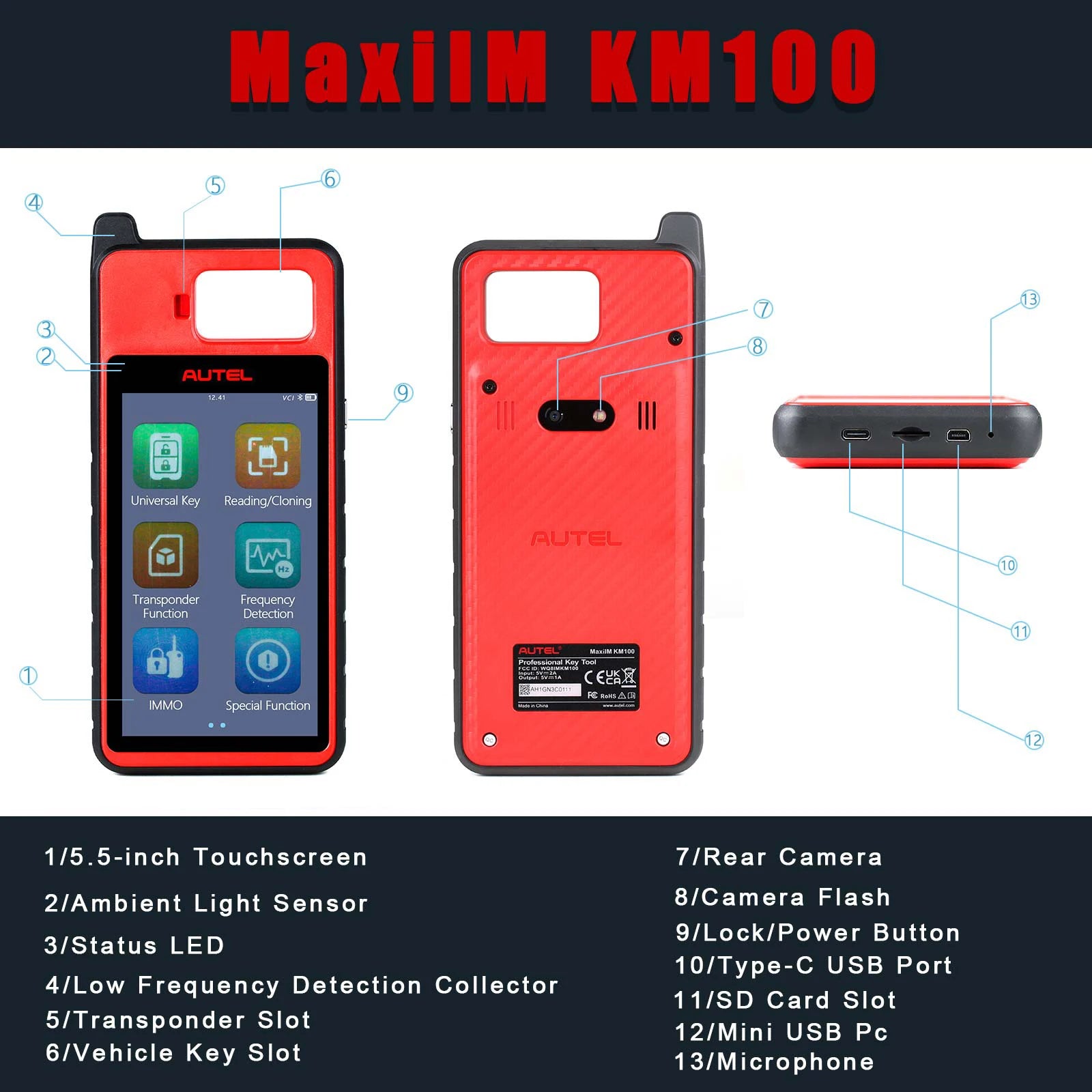

>>> Superior Hardware Configualtion:

✔️ Display: 5.5-inch screen with 1280 x 720 resolution
✔️ CPU: Rockchip PX30 (4x ARM Cortex-A35 1.5GHz)
✔️ OS: Android 9.0
✔️ Memory: 2GB RAM/ 64GB on-board memory
✔️ Camera: 8 Megapixels
✔️ VCI: MaxiVCI V200
✔️ Connection: Wi-Fi, Bluetooth 5.0, USB 2.0 type C
✔️ Battery: 4950mAh

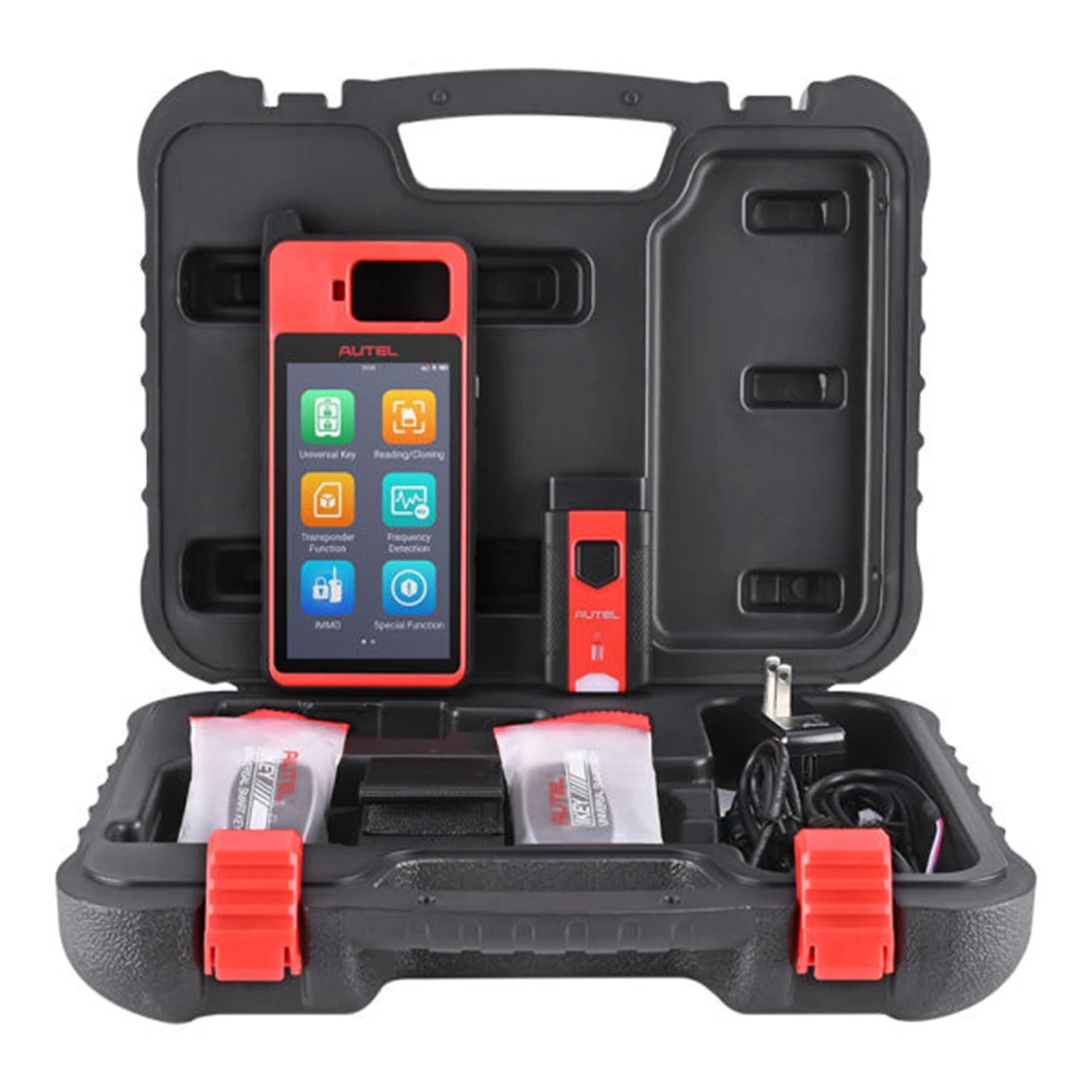

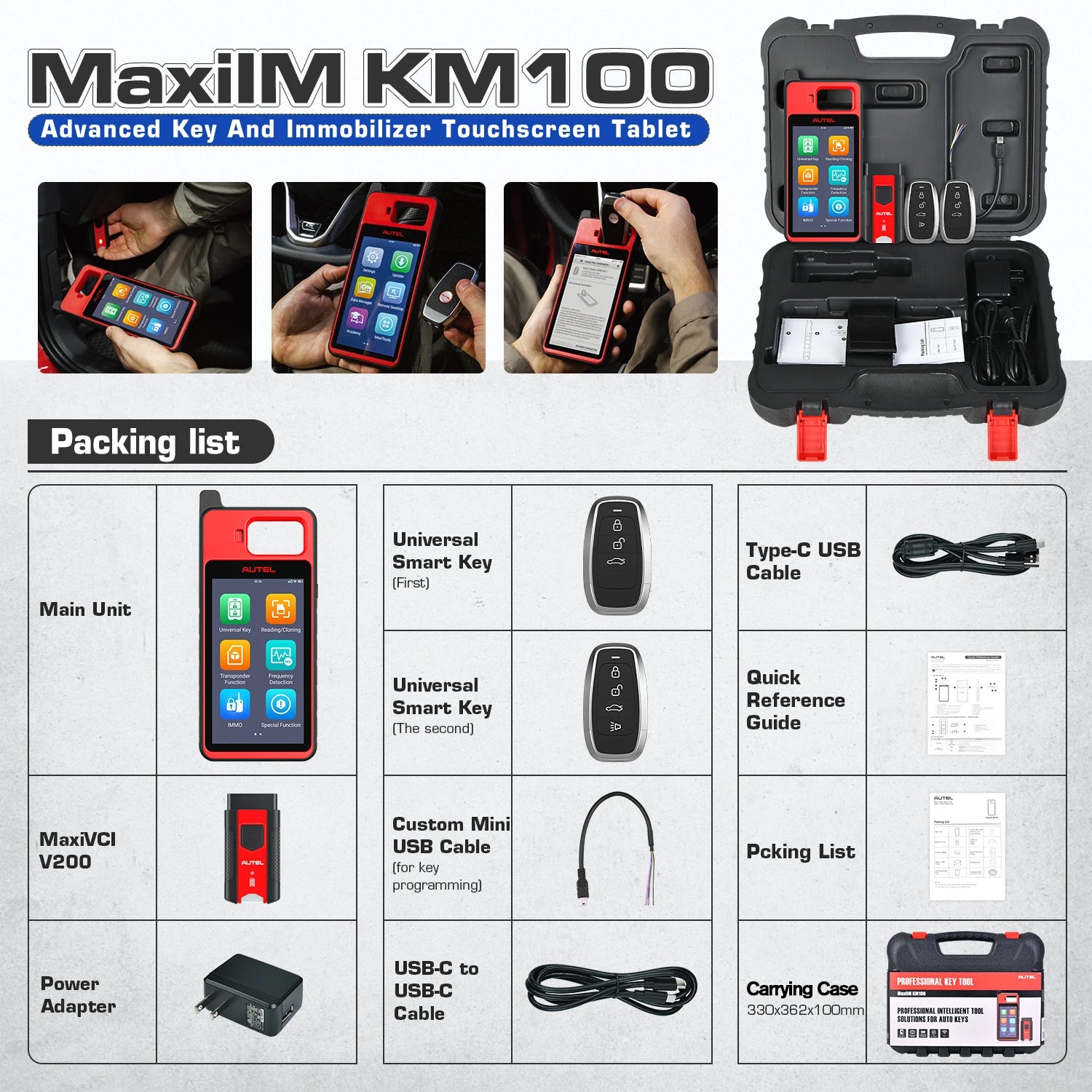

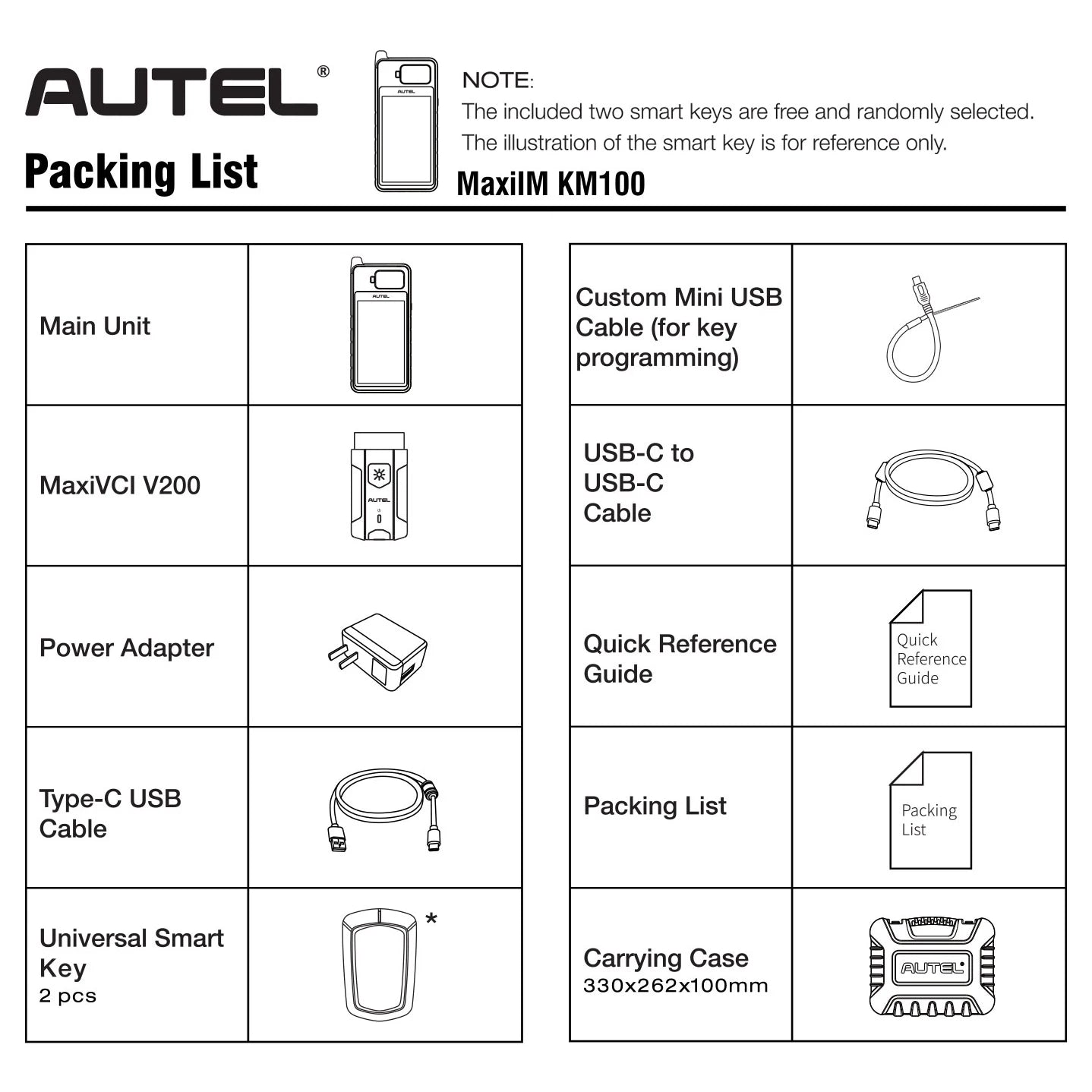

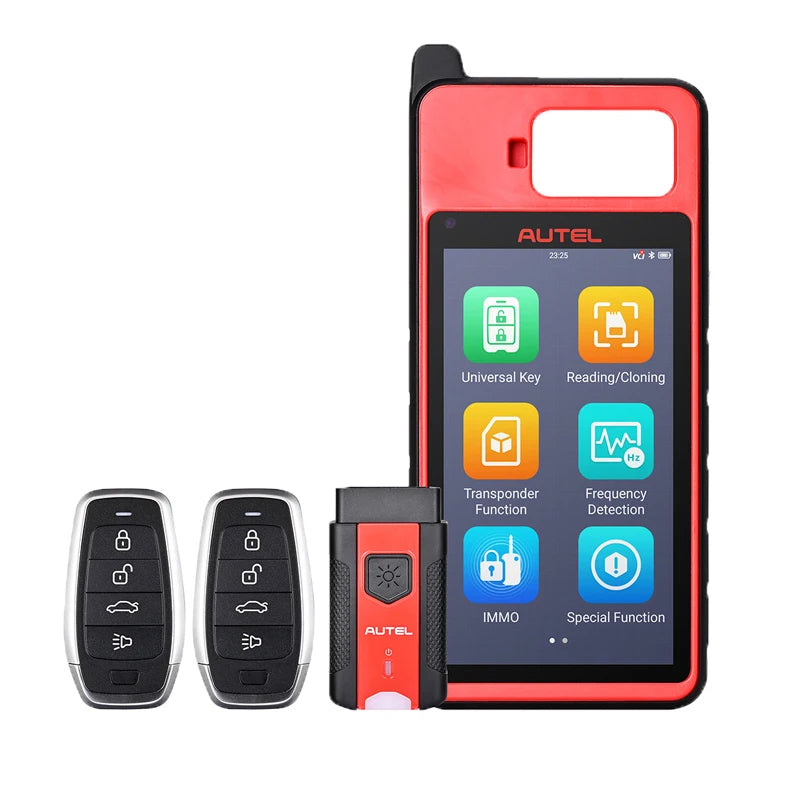

>>> 2 PCS OE-Level Autel Smart Keys included in the package

1. Stable OE-Level Quality: Autel KM100 comes with 2pcs FREE universal smart blank k~eys in the package which can generate a wide range of universal keys with reliable quality to meet various needs of customers.

2. Dual-Band: Supports 8 series of Autel I~KEY & 37 kinds of appearance (continuously increasing with frequent updates), and is compatible with low frequency (315M/433M) and high frequency (868M/915M) two types.

Quick and Accurate Frequency Detection:

>>> Frequency Detection:

Accurately detects the frequency of the smart k~ey for a wide range of vehicle models. The operation instructions and frequency data will display on the screen in both text and graph manners.

>>> AutoVIN:

Compared with other competitors, the MaxiIM diagnostics system features the latest VIN-based AutoVIN function to identify vehicles in just one touch, speed up by 50%, which allows the technician to quickly detect vehicles, scan all the diagnosable IMMO ECUs on every vehicle and run diagnostics on the selected system.

Wide Range of Key Styles

>>> Stable OE-Level Quality I~KEY:
Apart from 2PCS Autel blank smart k~ey included in the package ( no cost), this KM100 programming tool supports 8 series of I~KEY and 37 kinds of appearance.
And compatible with low frequency (315M/ 433M) and high frequency (868M/ 915M) two types

Specification:

Dimensions (WxHxD): 200mm(7.9") x 89 mm (3.5") x 22 mm (0.87")
Weight: 352.7g (0.8 lb)
Screen: 5.5-inch screen with 1280 x 720 resolution
Processor: Rockchip PX30 (4x ARM Cortex-A35 1.5GHz)
Operating System: Android TM9.0
Memory: 2GB RAM/64GB on-board memory
Camera: 8 megapixels
Connection: Wi-Fi, Bluetooth 5.0, USB 2.0 type C
Battery: 4950mAh lithium-polymer battery
VCI: V200
Input: 5V/2A
Sensor: Ambient light sensor
Audio Input/OutputMIC: supported
Speaker: supported
Operating Temp: -10 to 45°C (14 to 113°F)
Storage Temp: -20 to 60°C (-4 to 140°F)
