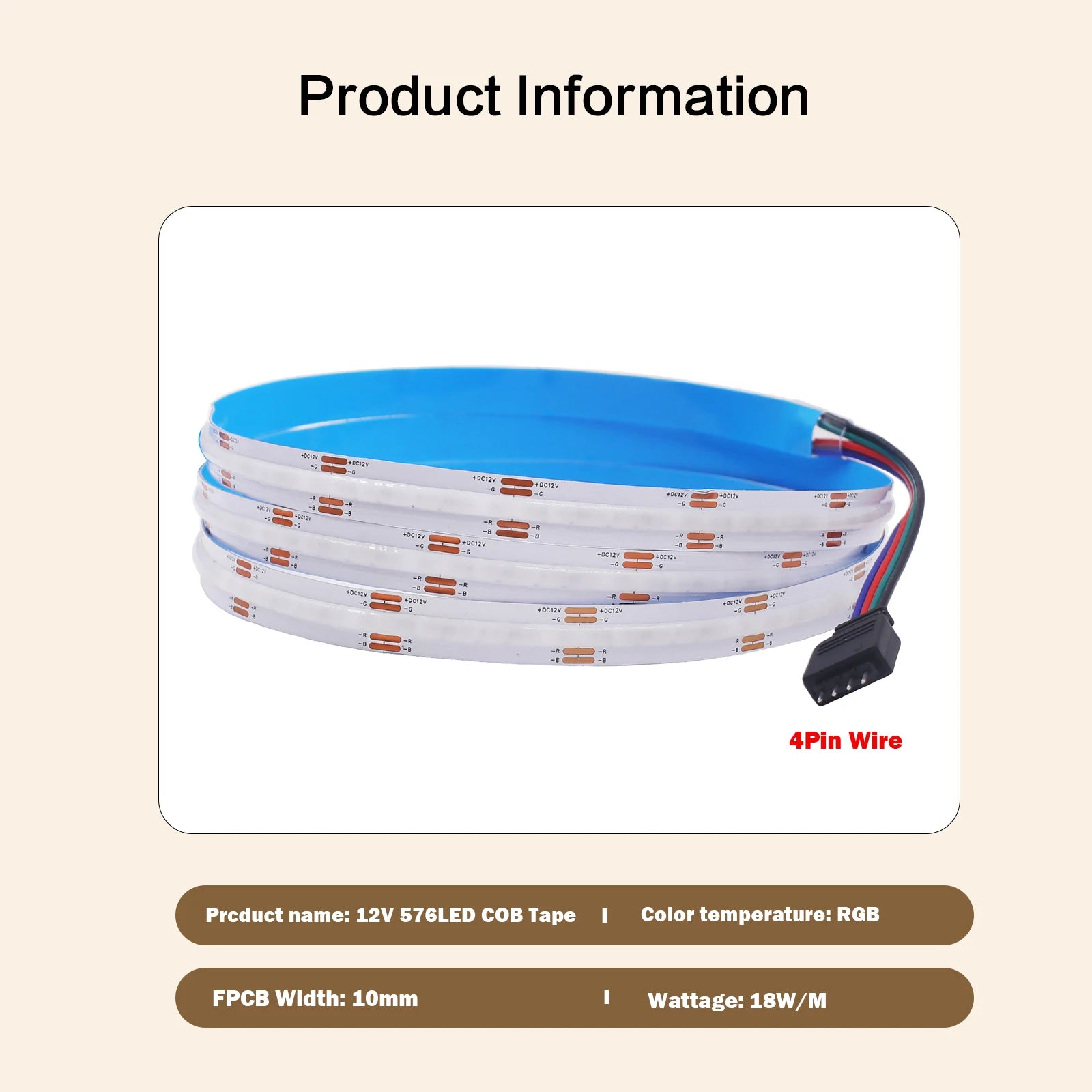

RGB 576LEDs COB LED Strip Specification:

Input Voltage: DC12V/24V

Wattage: 18W/M

FPCB Width: 10mm

LED Quantity: 576LEDs/M

Cutting Length: 31mm(12V),62mm(24V)

Color temperature: RGB

Color Rendering Index: Ra＞90

Operation temperature: -20℃-+45℃

Storage temperature: -20℃-+60℃

View angle: 180°

Energy grade: A+

Working hour:50,000hrs lifetime for Tc<70°C

Waterproof Rate:IP30

Color rending index: Ra >90

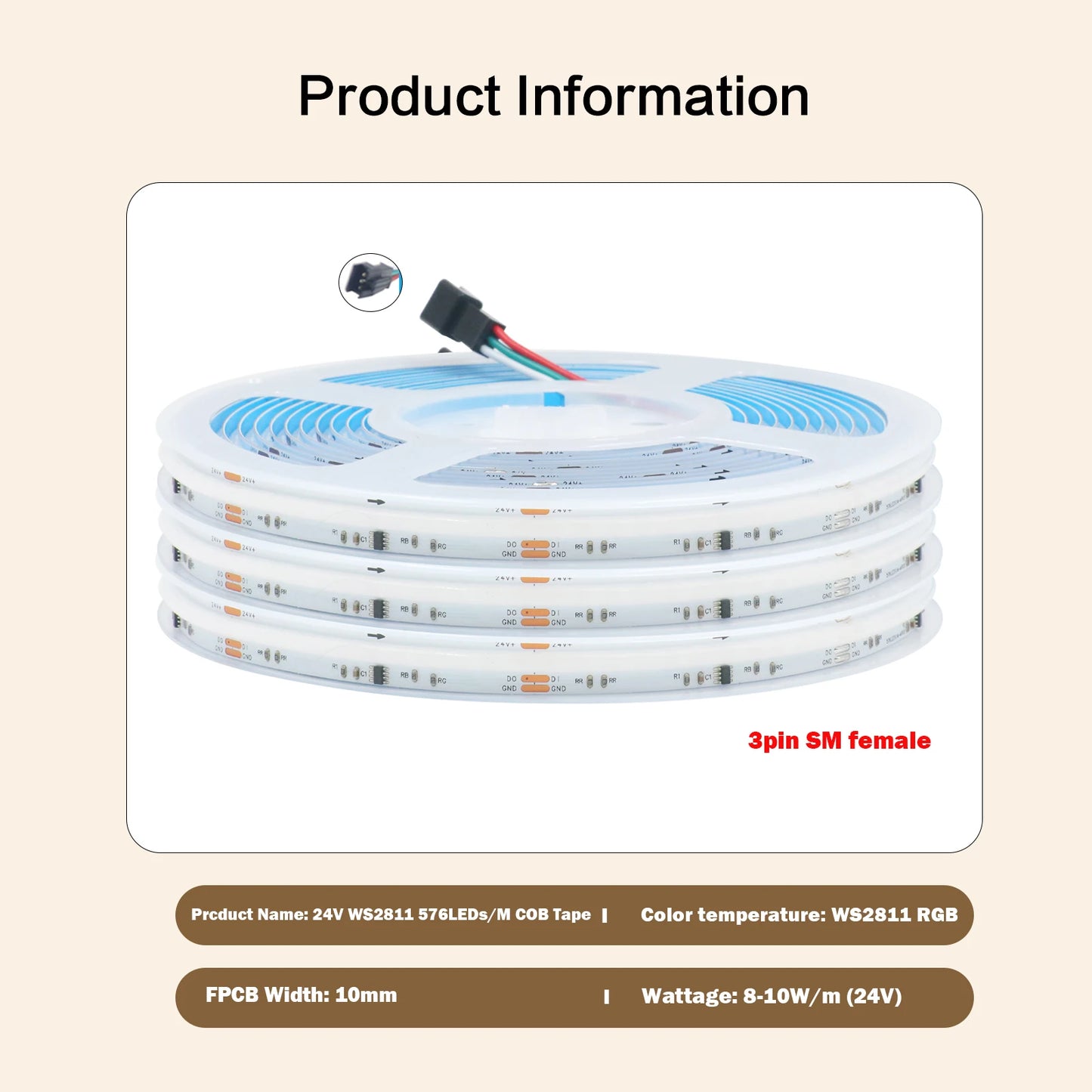

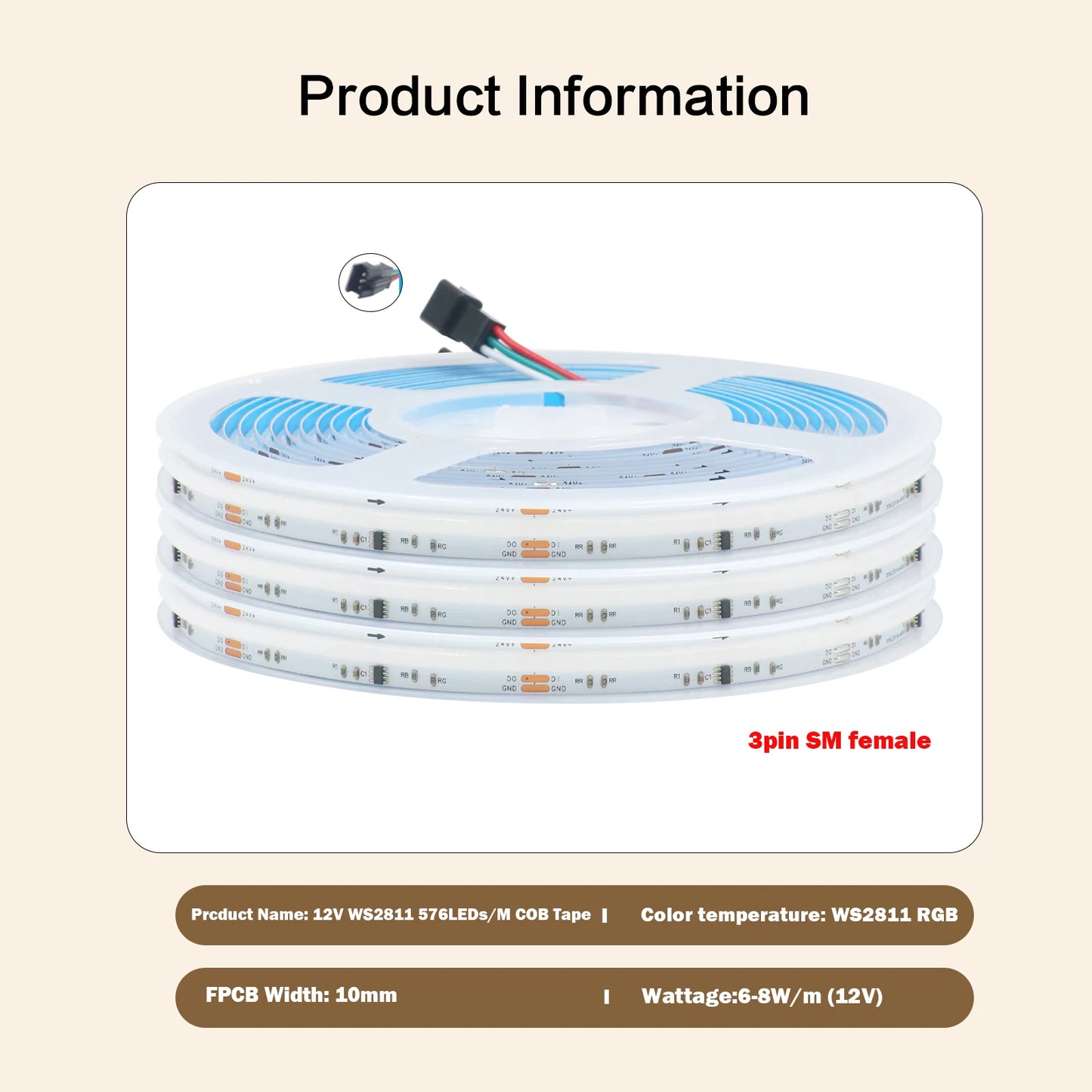

WS2811 RGB 576LEDs COB LED Strip Specification:

Input Voltage: DC12V/24V

Pixels: 16 pixels/meter

Power: 8-10W/m (24V), 6-8W/m (12V)

FPCB Width: 10mm

LED Quantity: 576LEDs/M

Cutting Length: 62mm

Color: RGB full color

Color Rendering Index: Ra＞90

Operation temperature: -20℃-+45℃

Storage temperature: -20℃-+60℃

View angle: 180°

Energy grade: A+

Working hour:50,000hrs lifetime for Tc<70°C

Waterproof Rate:IP20

Color rending index: Ra >90

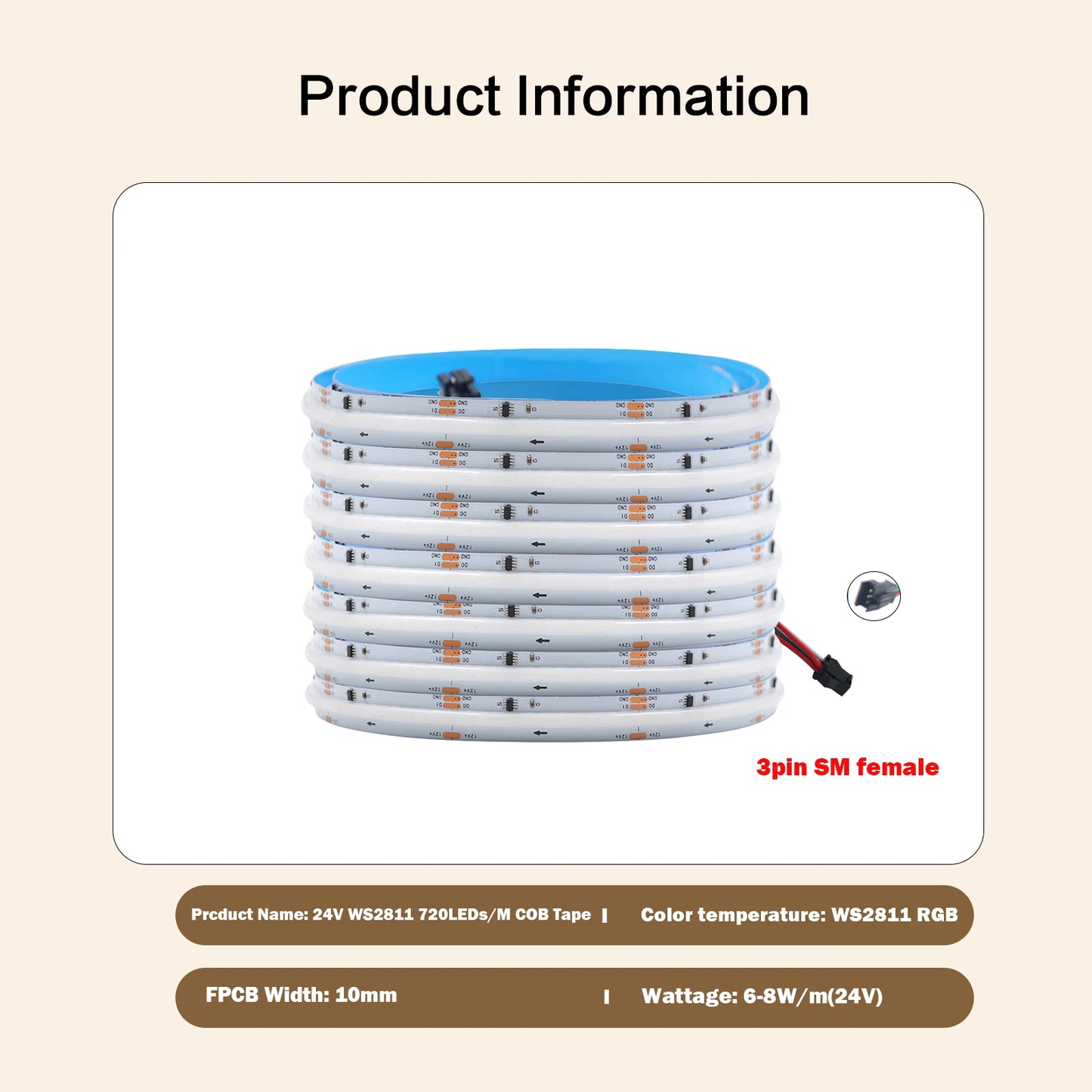

WS2811 RGB 720LEDs COB RGB LED Strip Specification:

Input Voltage: DC12/24V

Wattage: 8-10W/m（24V), 6-8W/m(12V)

Pixels: 20 pixels/meter

FPCB Width: 10mm

LED Quantity:720LEDs/M

Cutting Length: 50mm

Color temperature: RGB full color

Color Rendering Index: Ra＞90

Operation temperature: -20℃-+45℃

Storage temperature: -20℃-+60℃

View angle: 180°

Energy grade: A+

Working hour:50,000hrs lifetime for Tc<70°C

Waterproof Rate:IP21

Color rending index: Ra >80

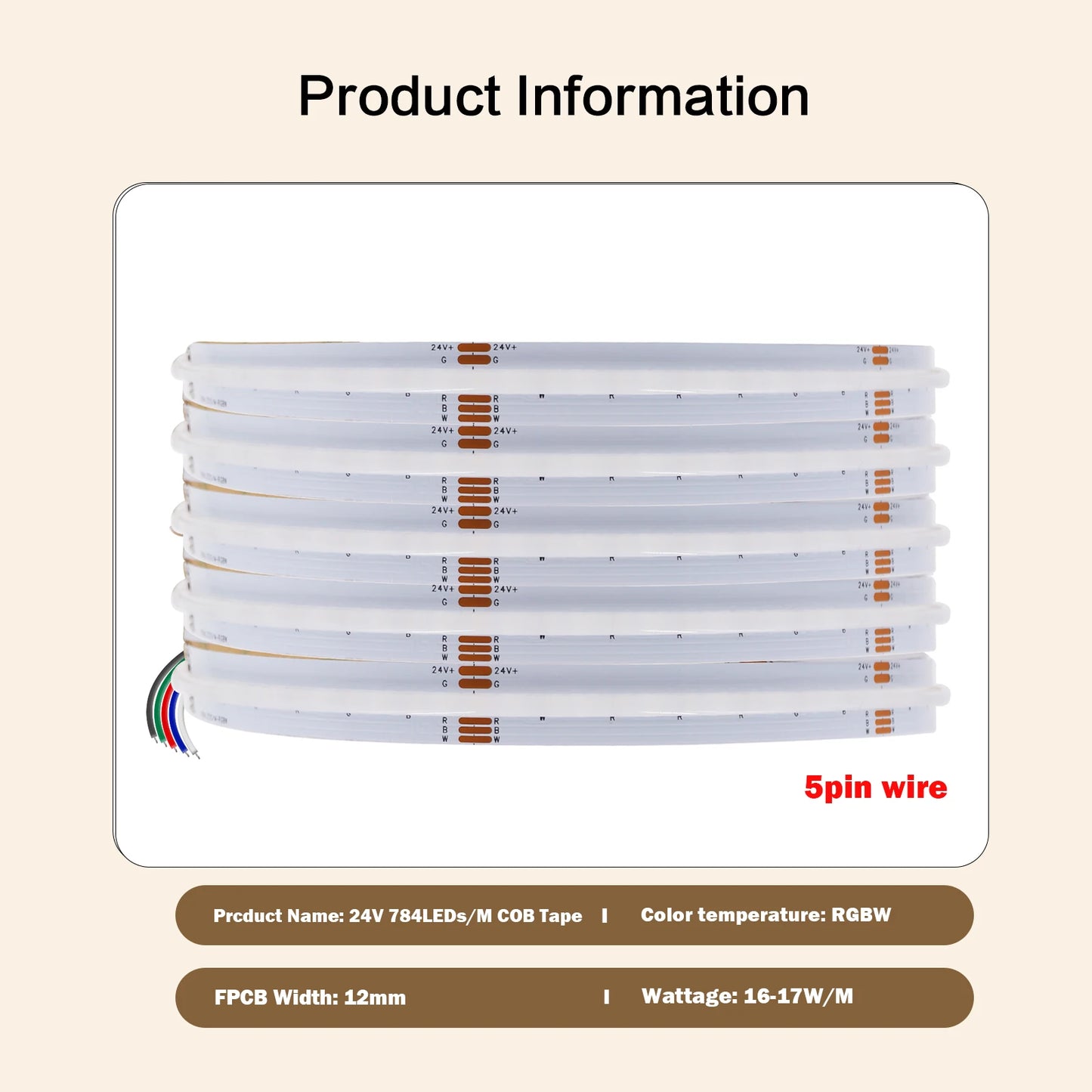

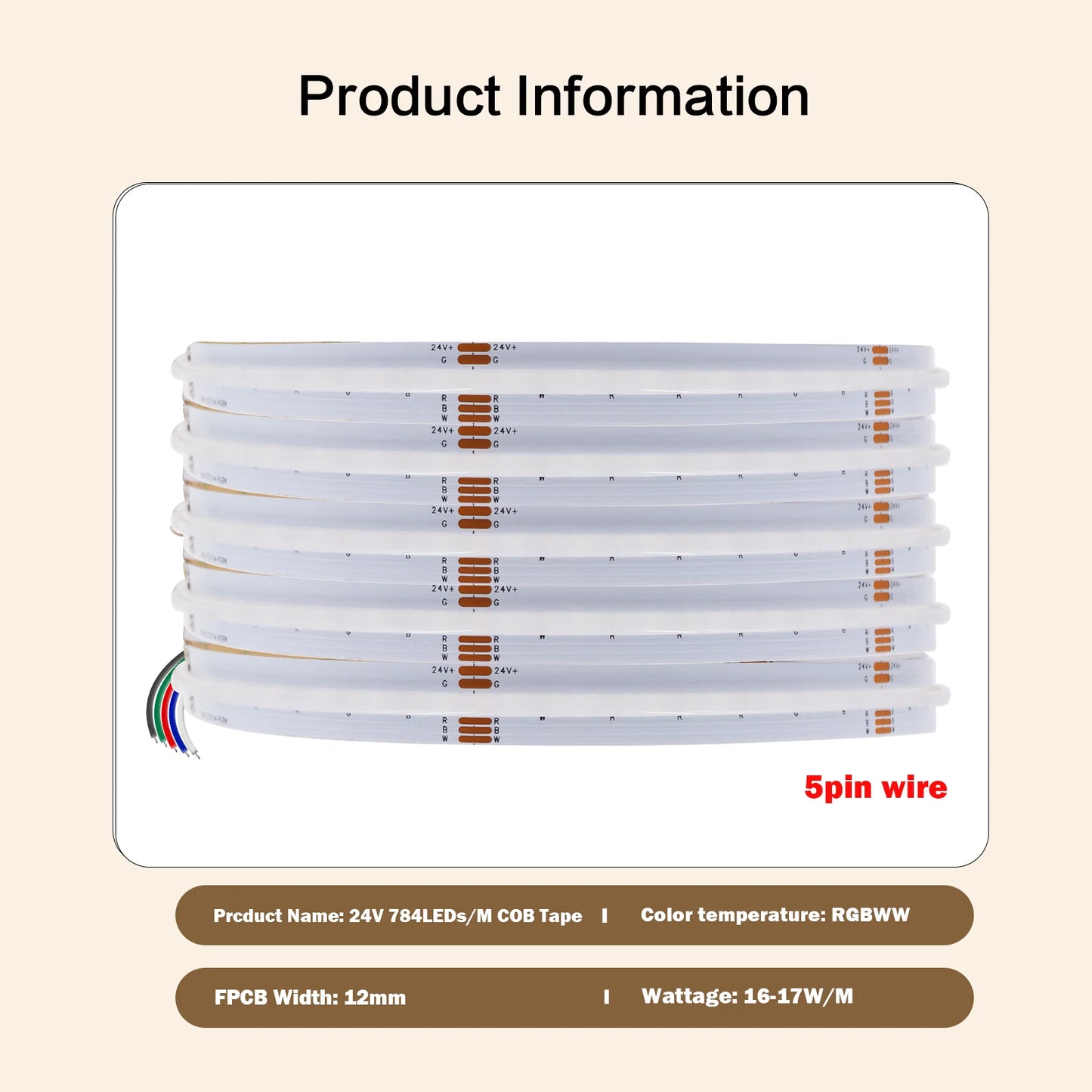

RGBWW/RGBW 784LEDs COB LED Strip Specification:

Input Voltage: DC24V

Wattage: 16-17W/M

FPCB Width: 12mm

LED Quantity: 784LEDs/M

Cutting Length: 25mm

Color temperature: RGBWW/RGBW

Color Rendering Index: Ra＞90

Operation temperature: -20℃-+45℃

Storage temperature: -20℃-+60℃

View angle: 180°

Energy grade: A+

Working hour:50,000hrs lifetime for Tc<70°C

Waterproof Rate:IP20

Color rending index: Ra >90

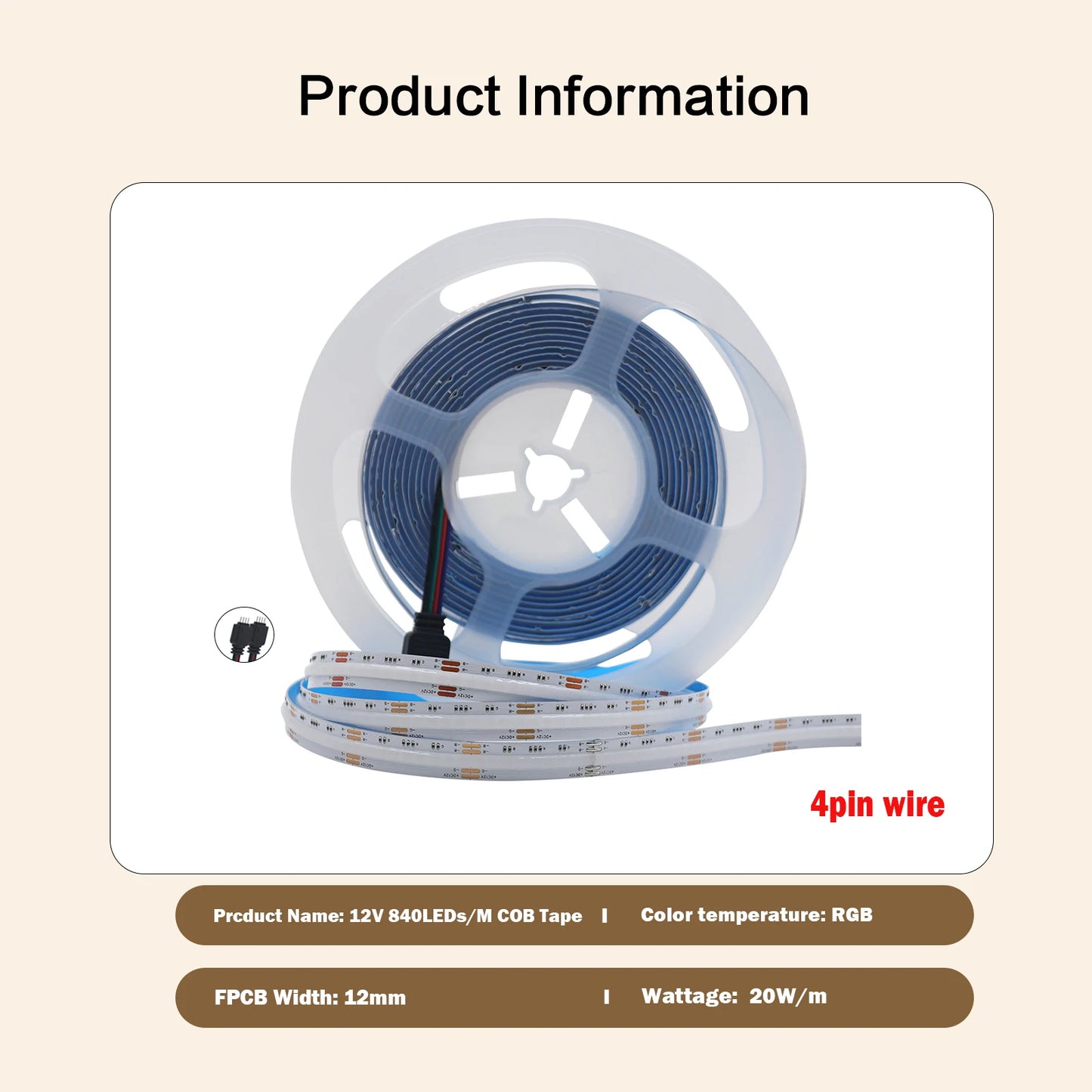

RGB 840LEDs COB LED Strip Specification:

Input Voltage:DC12V/24V.

Wattage: 20W/m.

FPCB Width: 12mm.

LED Quantity: 840 LEDs/M.

Color temperature: RGB

Color Rendering Index: Ra＞90.

Operation Temperature: -20℃-+45℃.

Storage Temperature: -20℃-+60℃.

View Angle: 180°

Working hour:50,000hrs lifetime for Tc<70°C

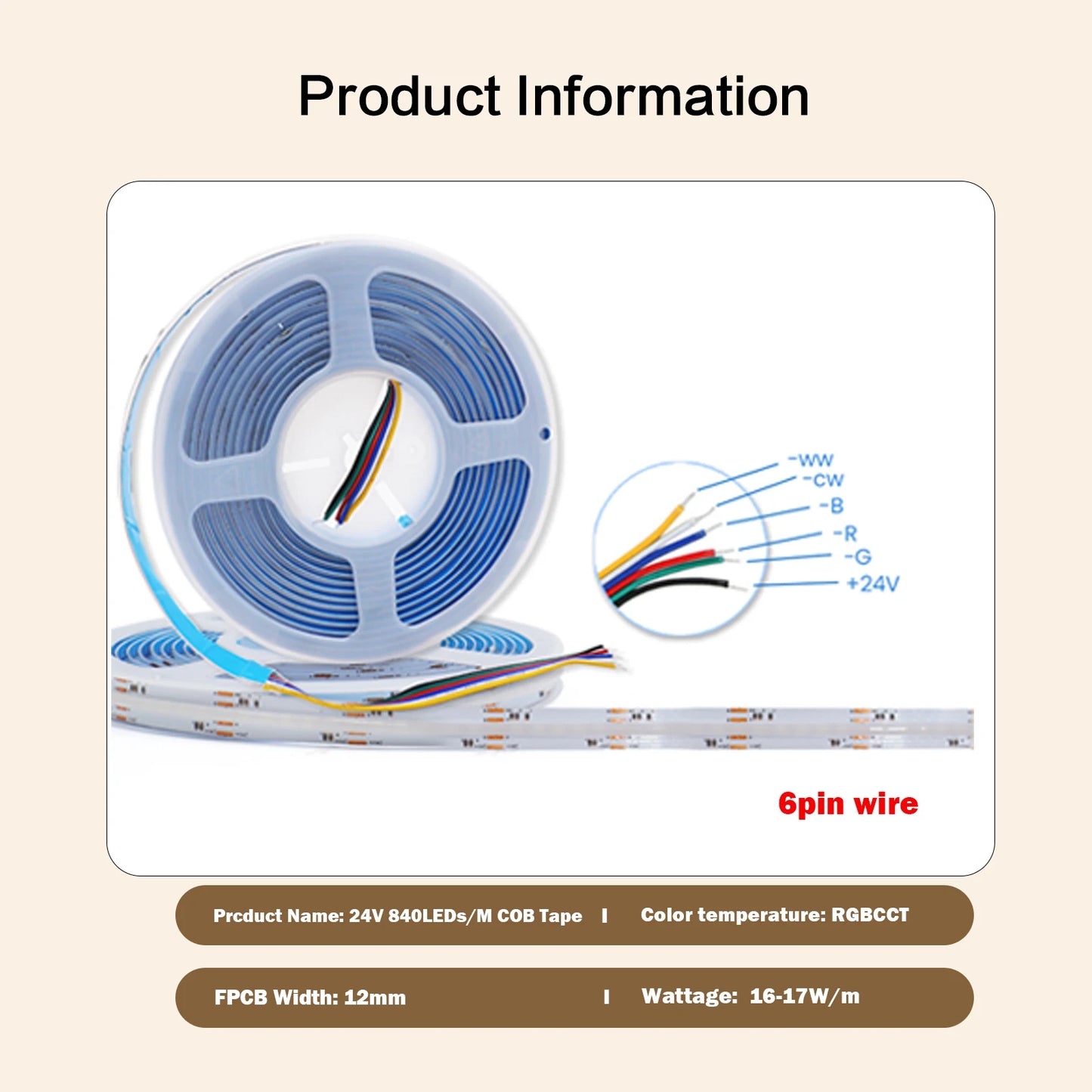

RGBCCT 840LEDs COB LED Strip Specification:

Input Voltage:DC24V.

Wattage: 16-17W/m

FPCB Width: 12mm.

LED Quantity: 840 LEDs/M.

Cutting Length: every 35mm.

Color temperature: RGBCCT

Individually Addressable: every 35mm can be unique controlled.

Color Rendering Index: Ra＞90.

Operation Temperature: -20℃-+45℃.

Storage Temperature: -20℃-+60℃.

View Angle: 180°

Working hour:50,000hrs lifetime for Tc<70°C

Note:

-Soldered is very normal in a electronic products,not any quality problem.

-no controller, no power adapter, if you need it, please pay for it.

-The 12V light strip can only be connected to the voltage device of 12V, and the 24V light strip can only be connected to the voltage device of 24V, please remember

Package include ：

-1pc x COB LED Light

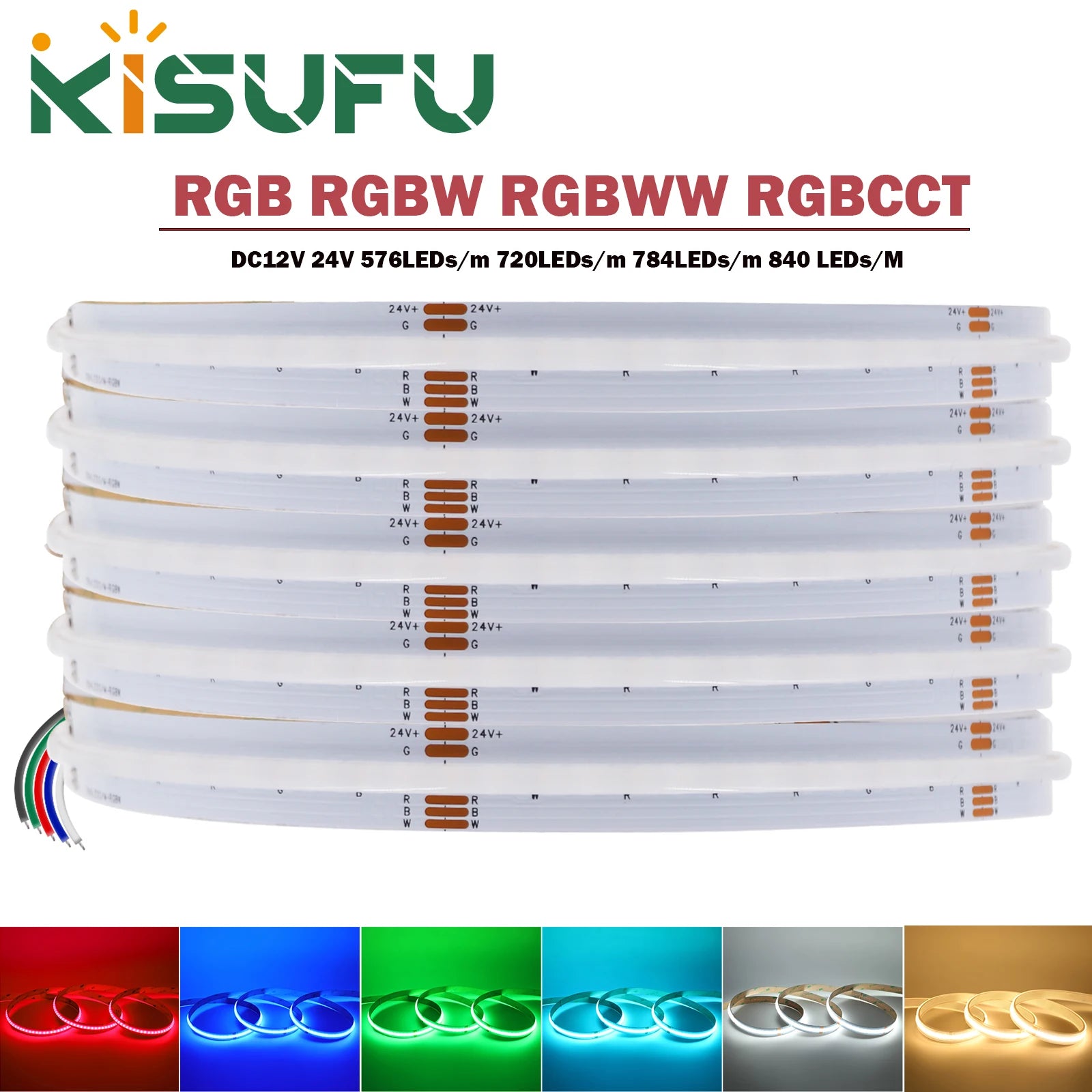

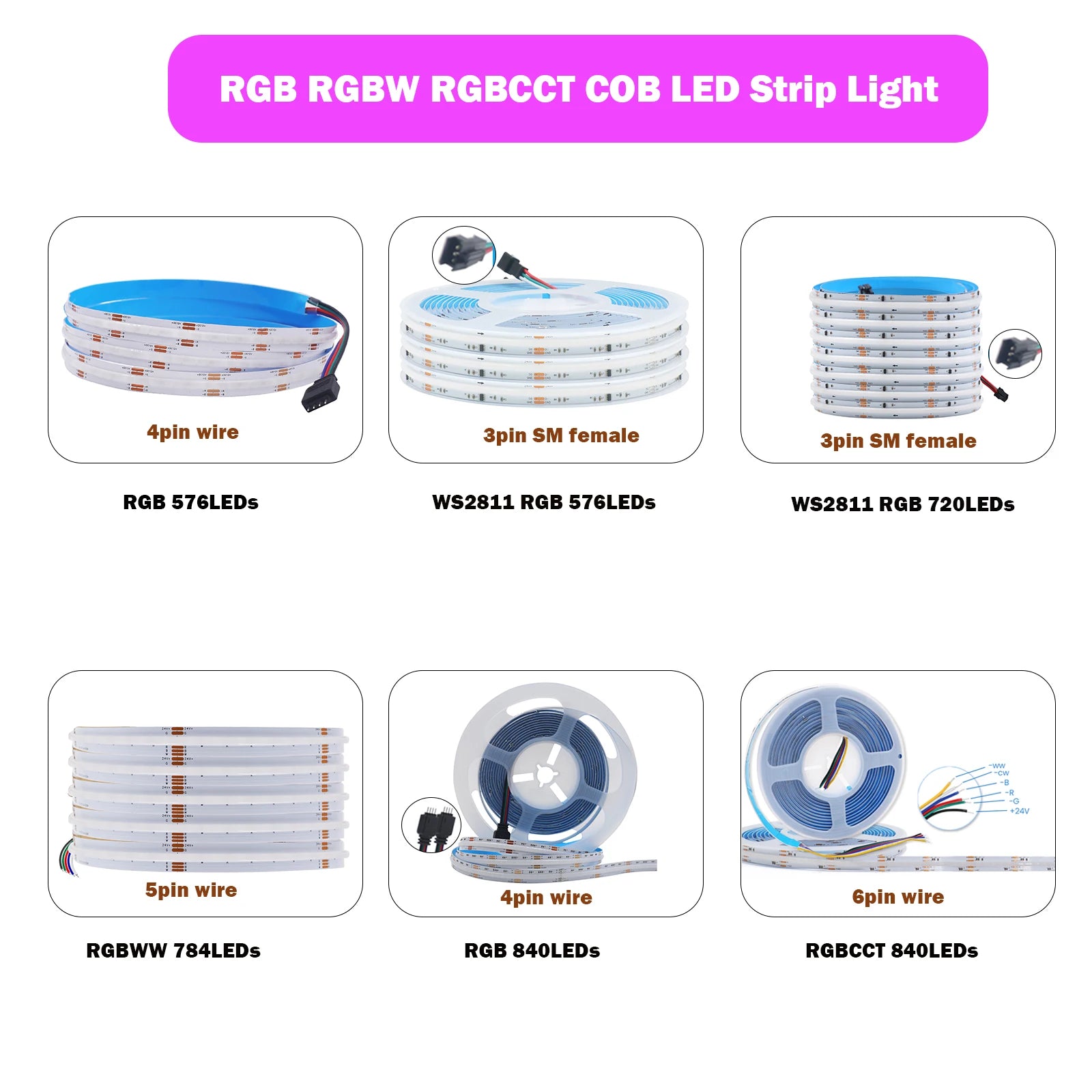

RGB RGBW RGBCCT COB LED Strip Light
Add color to your life

-cupboard

-Bedroom

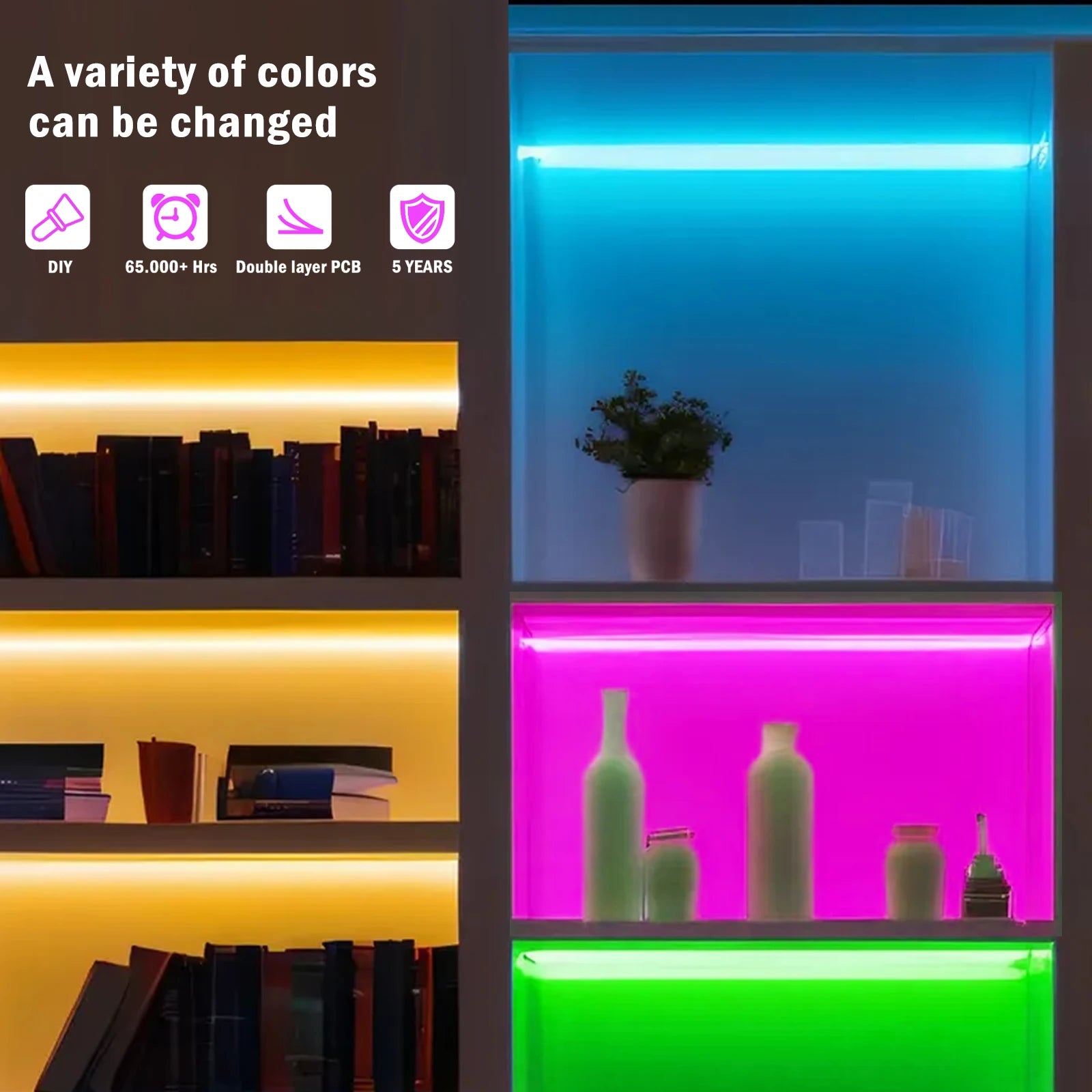

-KitchenA variety of colors can be changed

-Very soft

-Can be cut

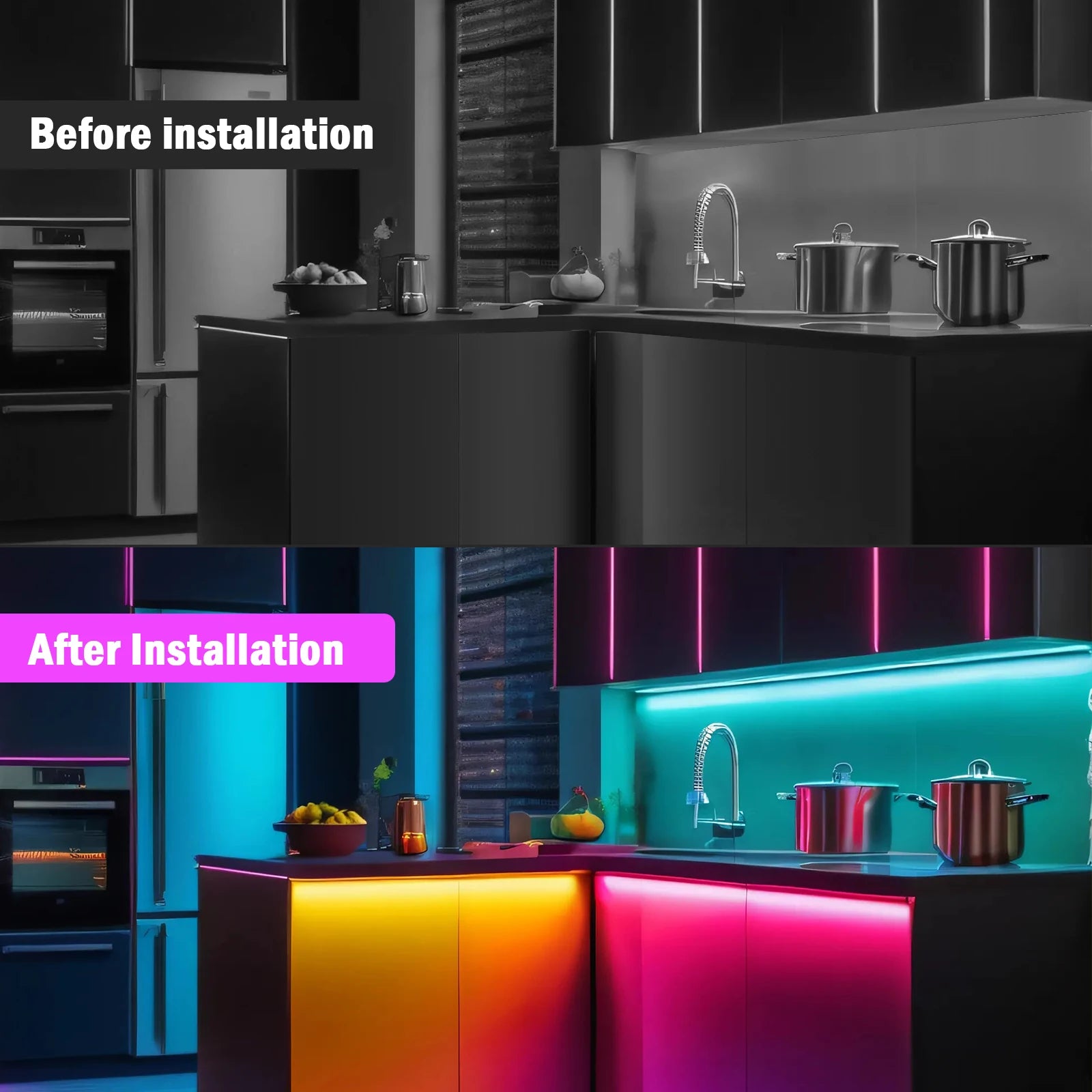

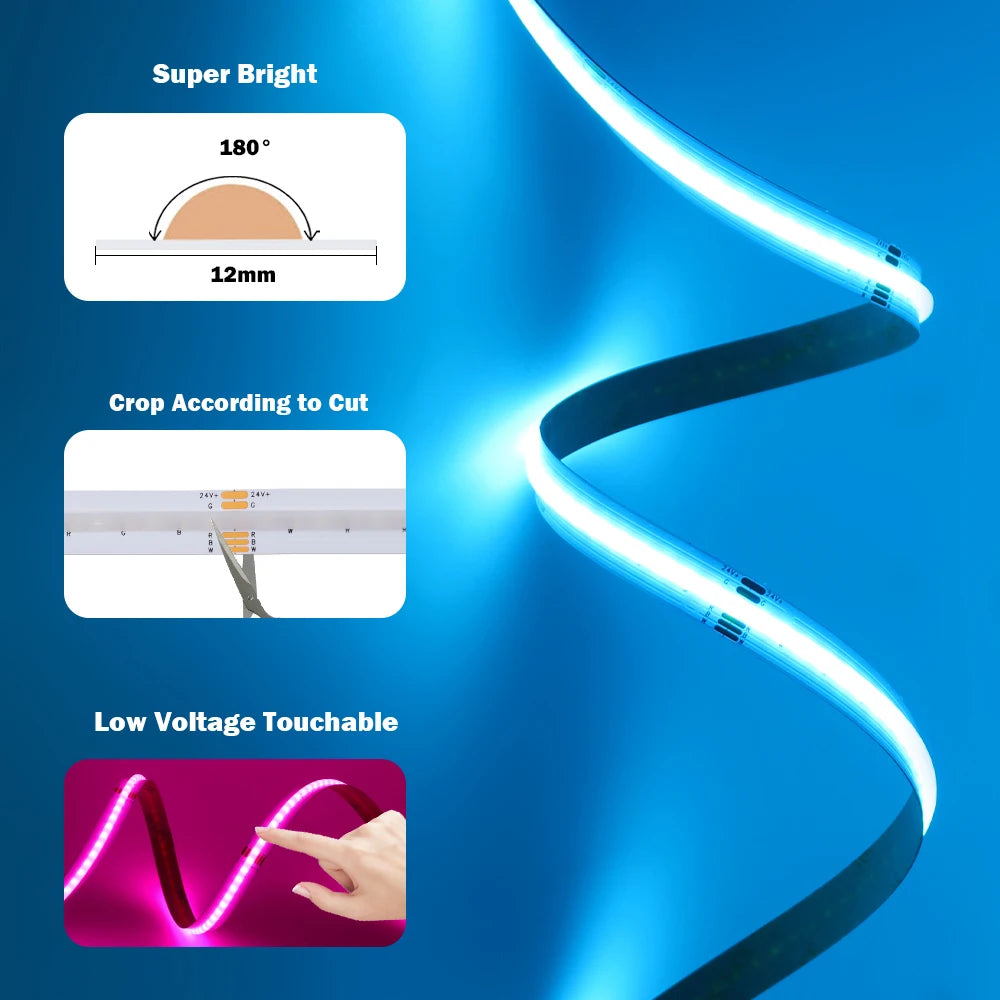

-Very durableIt is very different before and after lighting up, bringing warmth to your lifeLighting angle

-180 degrees

Cropping can be done according to the cropping mark

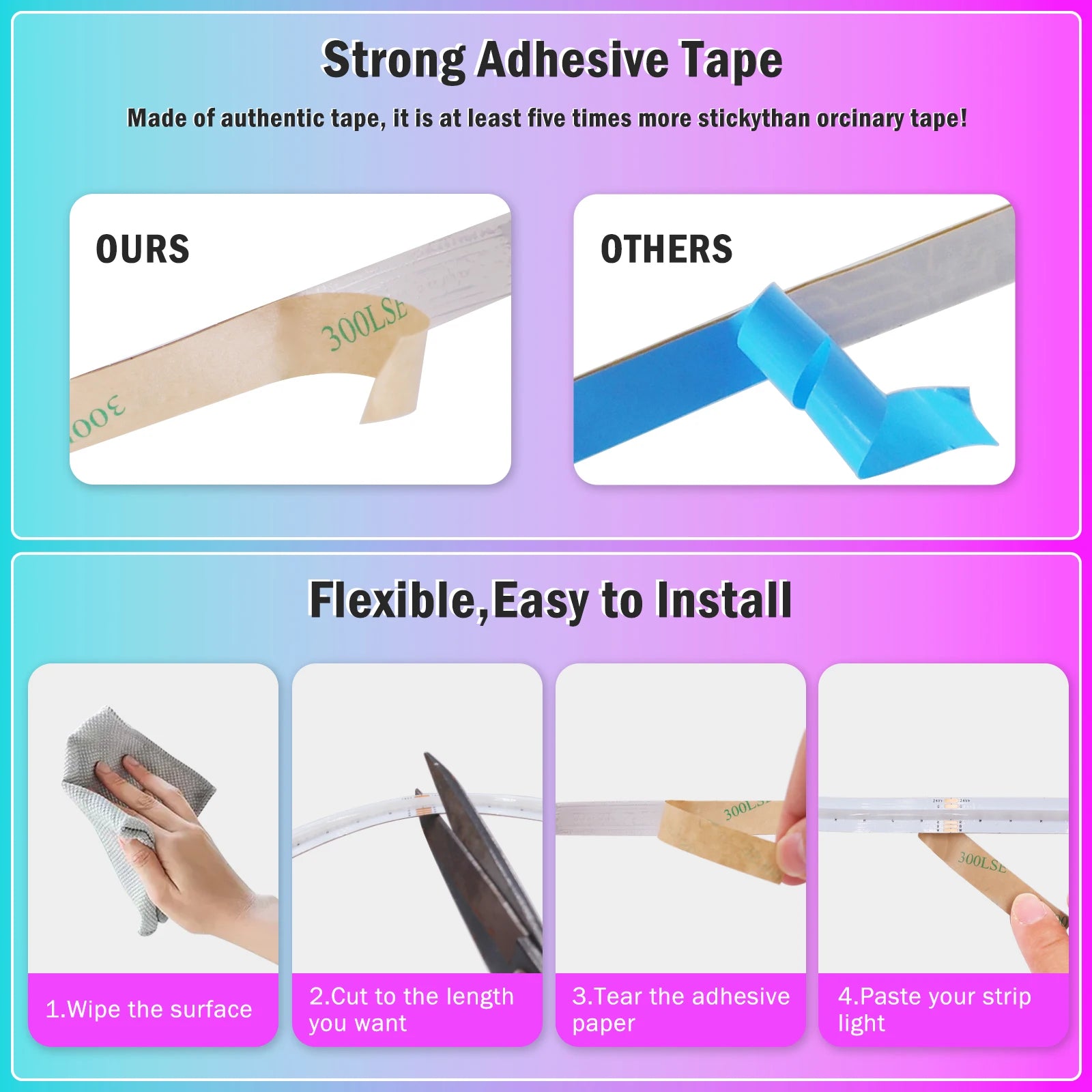

-It is not easy to cut errors if you have marksHow to install light strips

-1.Wipe the surface

-2.Cut to the lengthyou want

-3.Tear the adhesivepaper

-4.Paste your striplight
